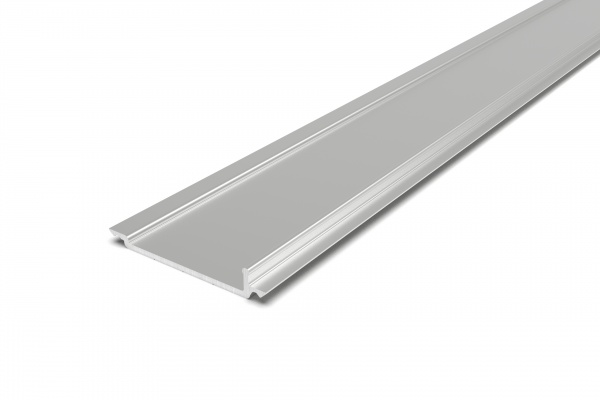

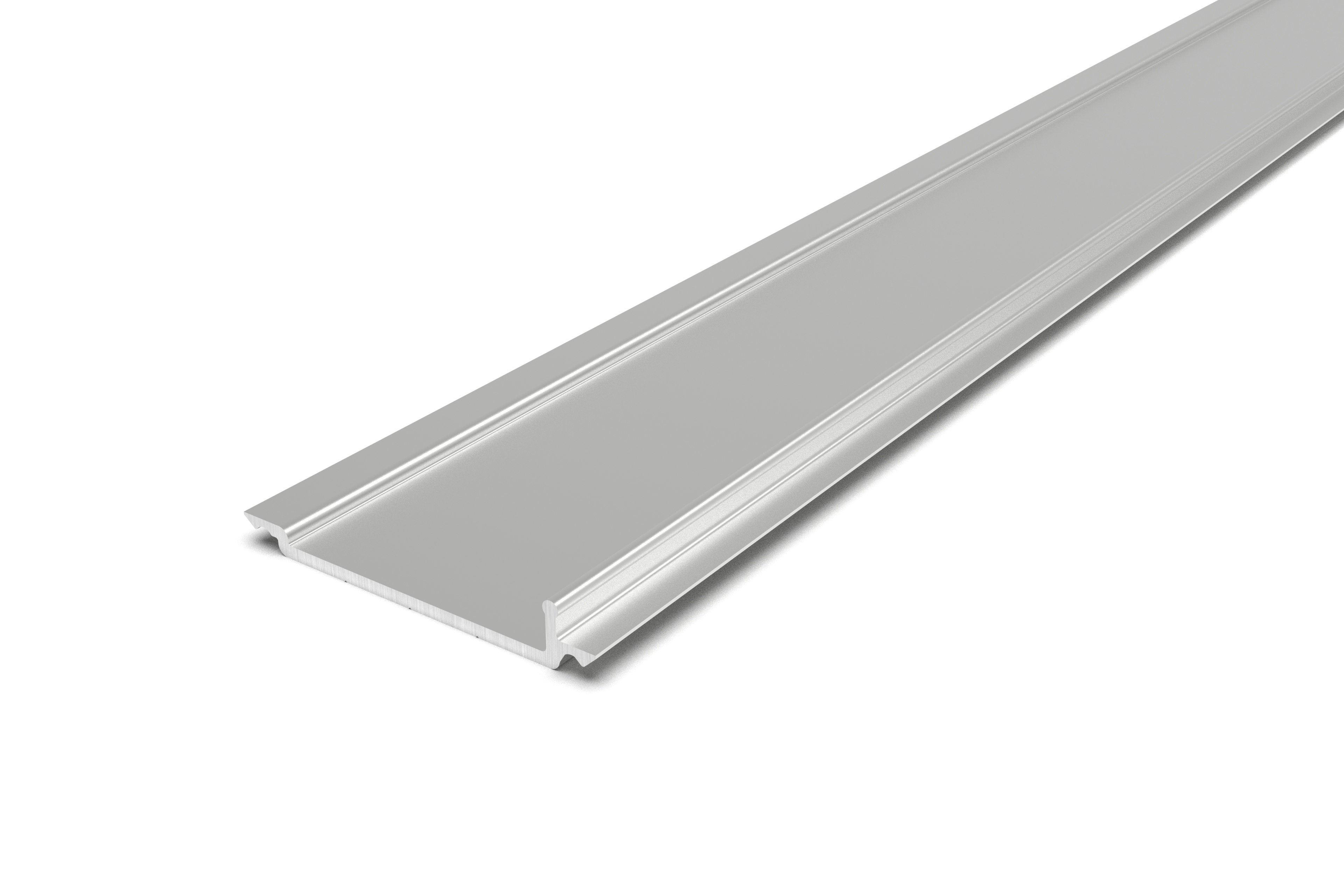

Wall profile 80
Piece according to desired length in mm
The profile is anodized and made of aluminum.

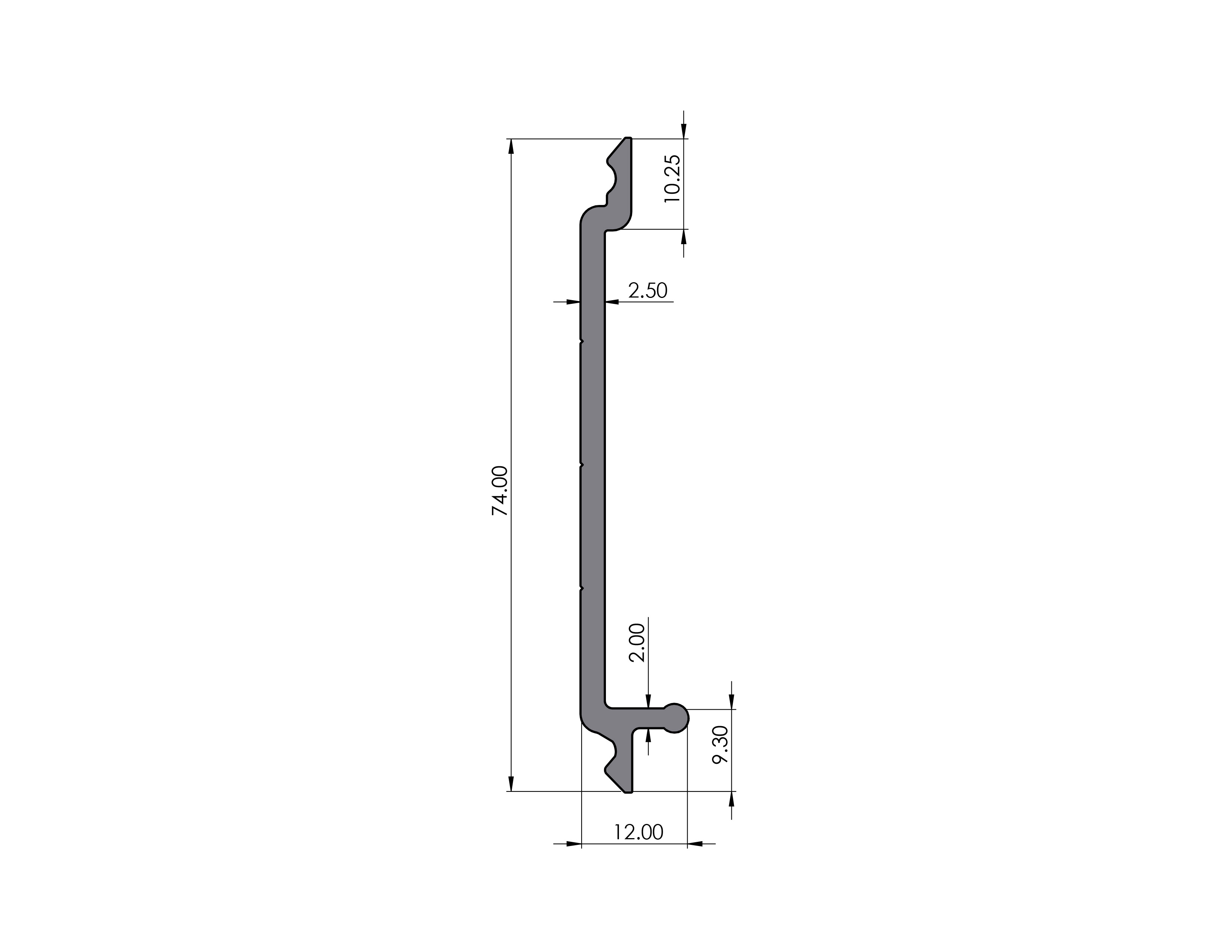

Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 0.1 cm4
Moment of inertia I y: 9.61 cm 4
Resistance torque W x: 0.1 cm³
Resistance moment W y: 2.43 cm³
Weight kg / m: 0.549
Note
Aluminum profile in natural anodised design from European production
Wall profiles are in combination with carrier profiles and serve for the production of cable duct modules
All sizes can be combined with each other
