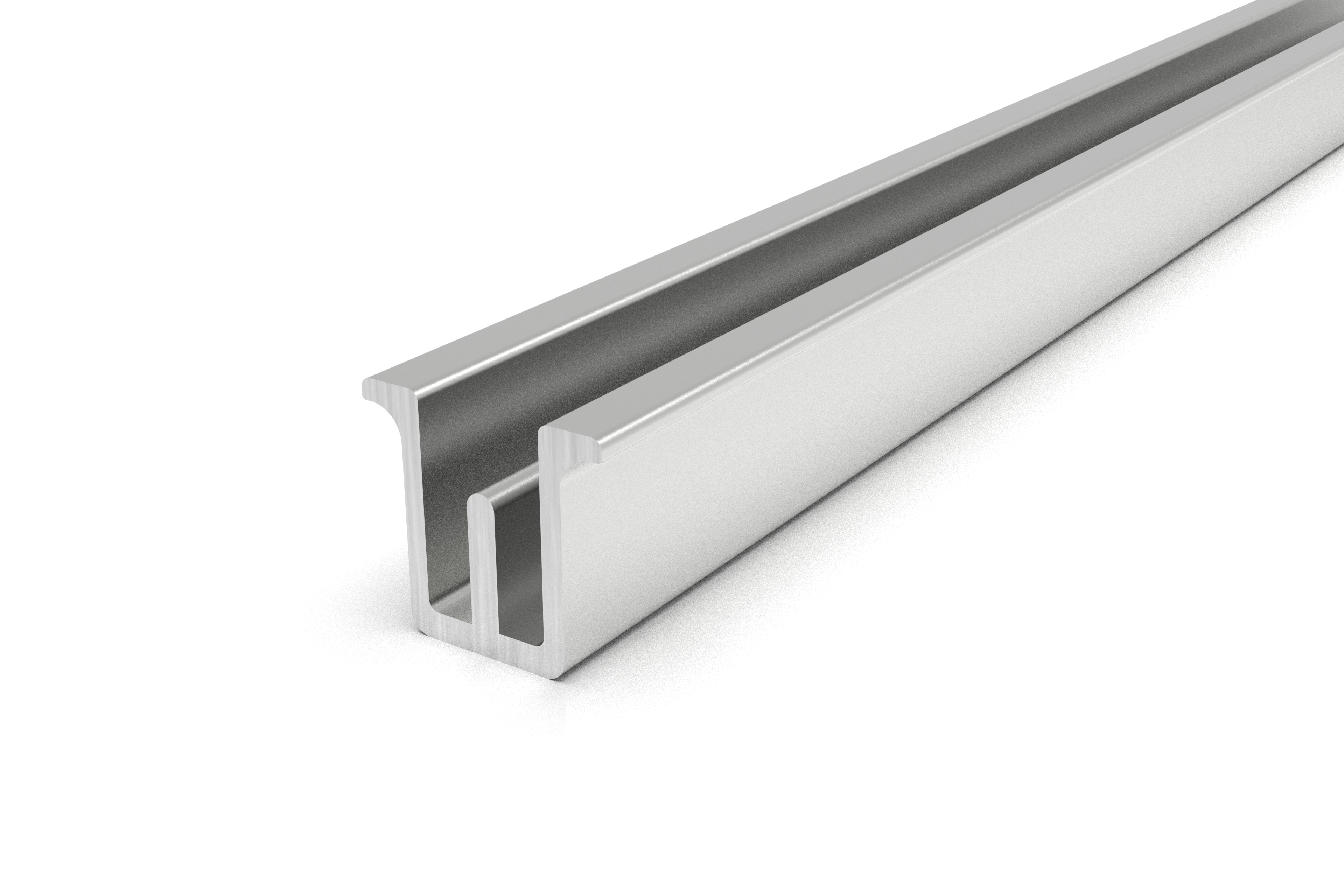

Our strut profile D6 mm with groove width 8 mm.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 0.05 cm4
Moment of inertia I y: 0.04 cm4
Resistance torque W x: 0.09 cm³
Resistance torque W y: 0.07 cm³
Weight kg / m: 0.120
Note
Aluminum profile in natural anodised design from European production

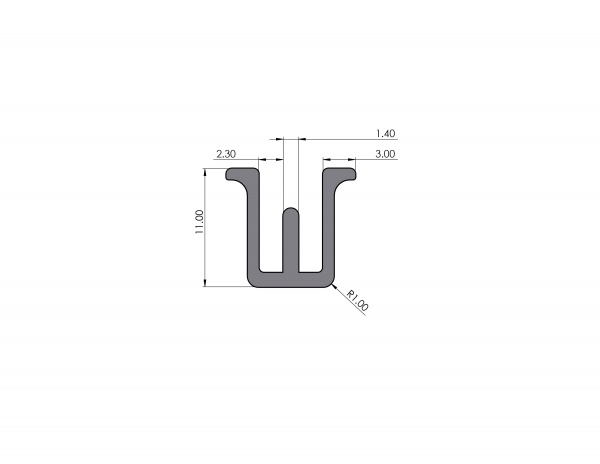

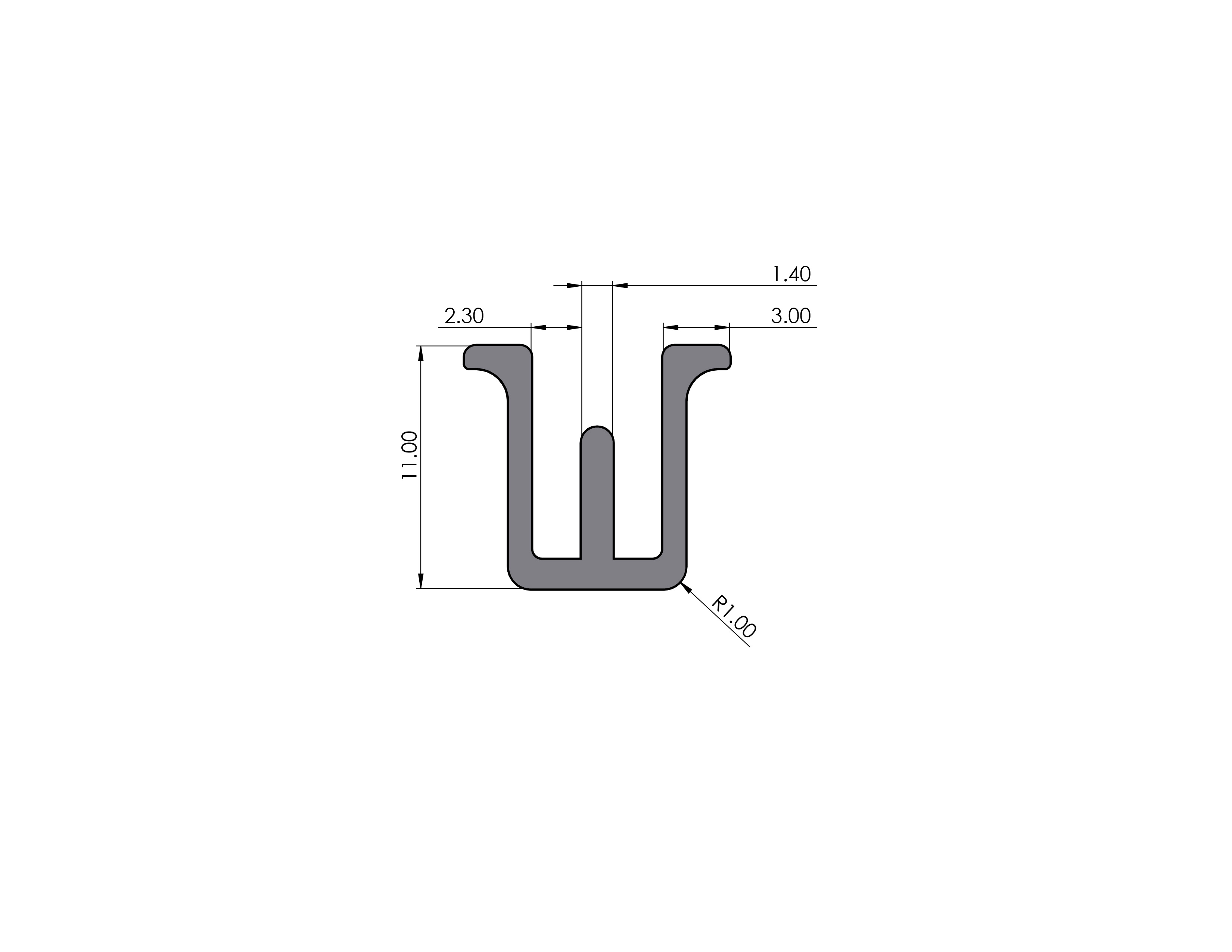

The shaft clamping profile D6 serves to receive the steel shaft 6. After mounting the shaft clamping profile in a profile groove, the shaft is finally pressed
Can be installed with all profiles of the 8 series
