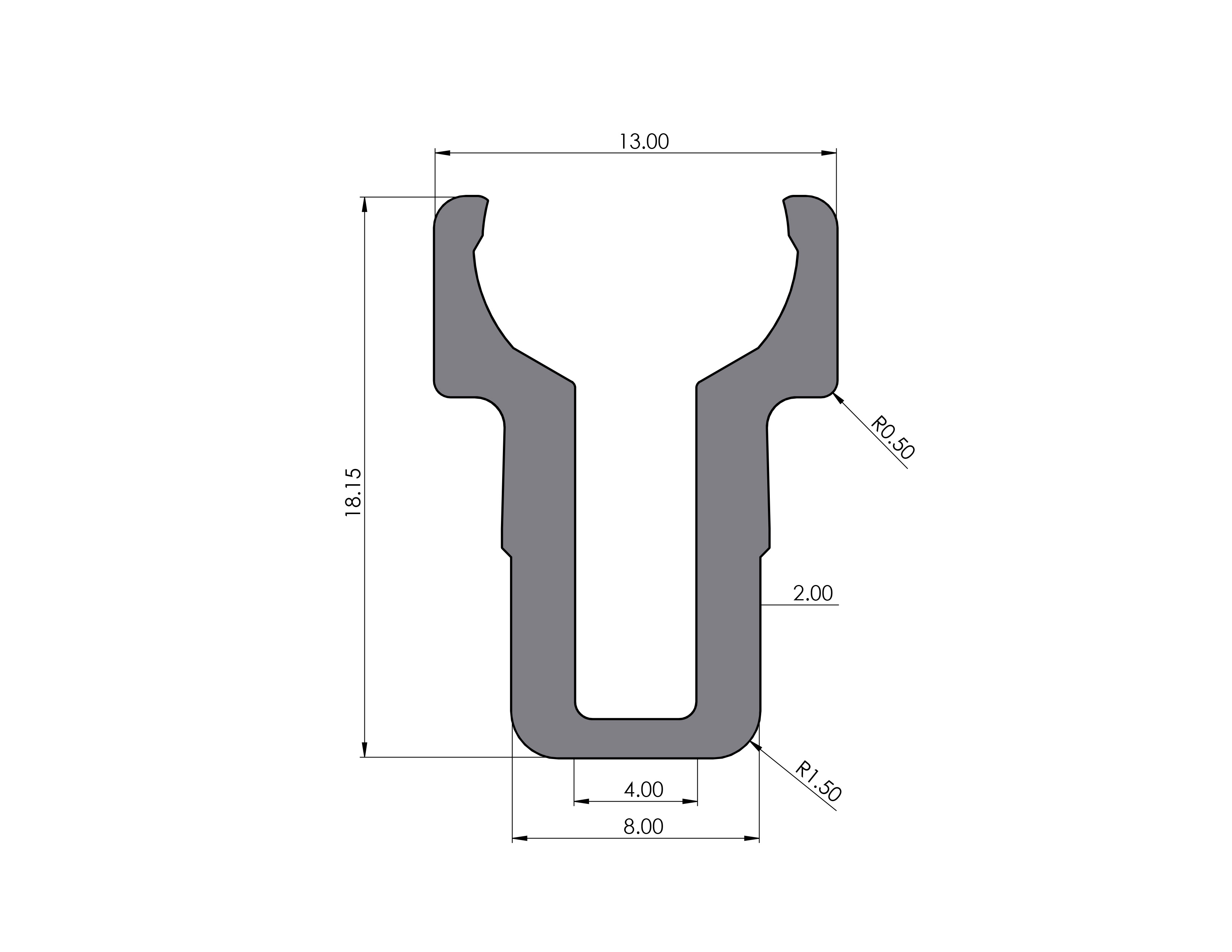

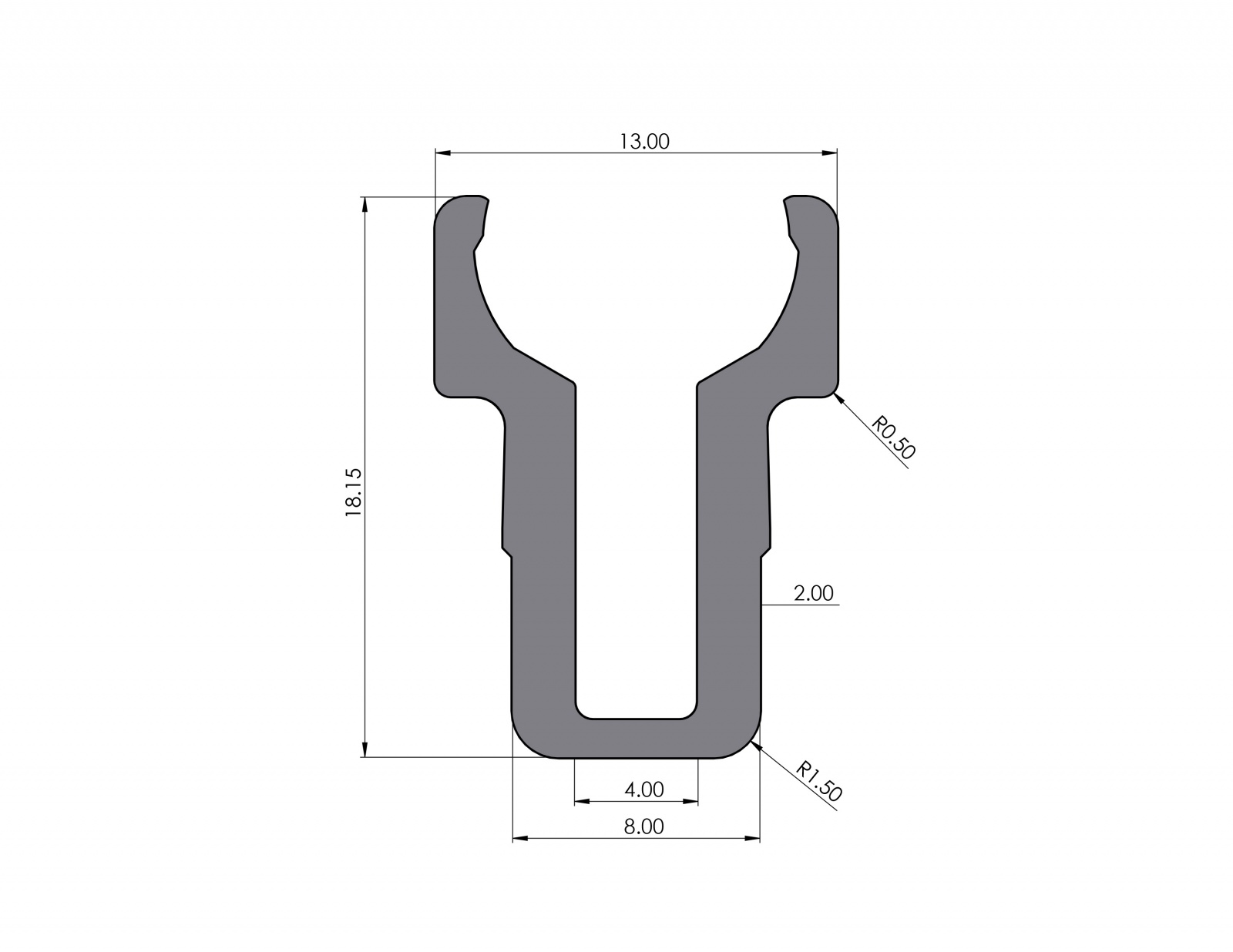

Our strut profile D10 mm with groove width 8 mm.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 0.21 cm4
Moment of inertia I y: 0.12 cm 4
Resistance torque W x: 0.21 cm³
Resistance torque W y: 0.19 cm³
Weight kg / m: 0.208
Note
Aluminum profile in natural anodised design from European production

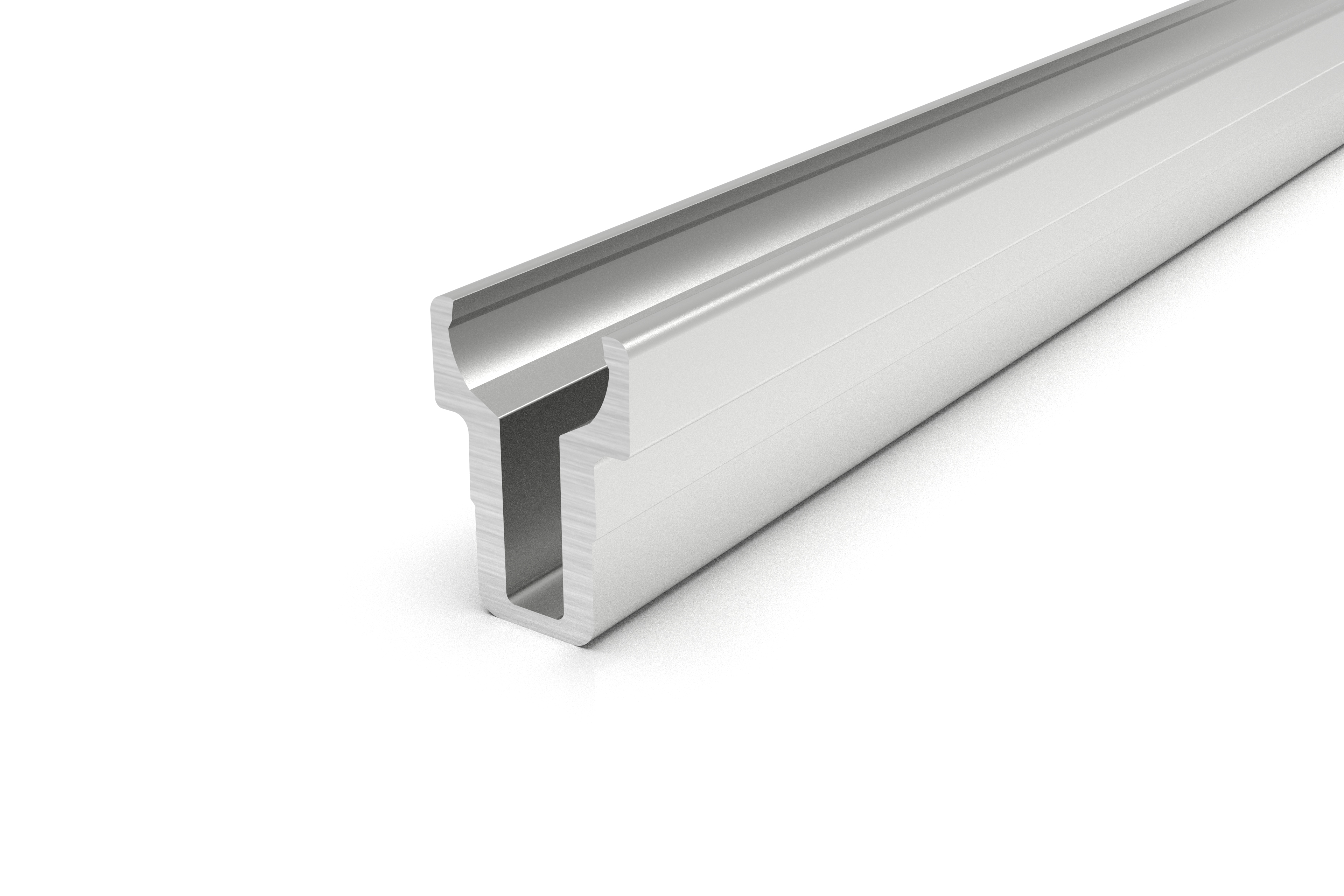

The shaft clamping profile D10 is used to hold the steel shaft 10. After mounting the shaft clamping profile in a profile groove, the shaft is finally pressed
Can be installed with all profiles of the 8 series
