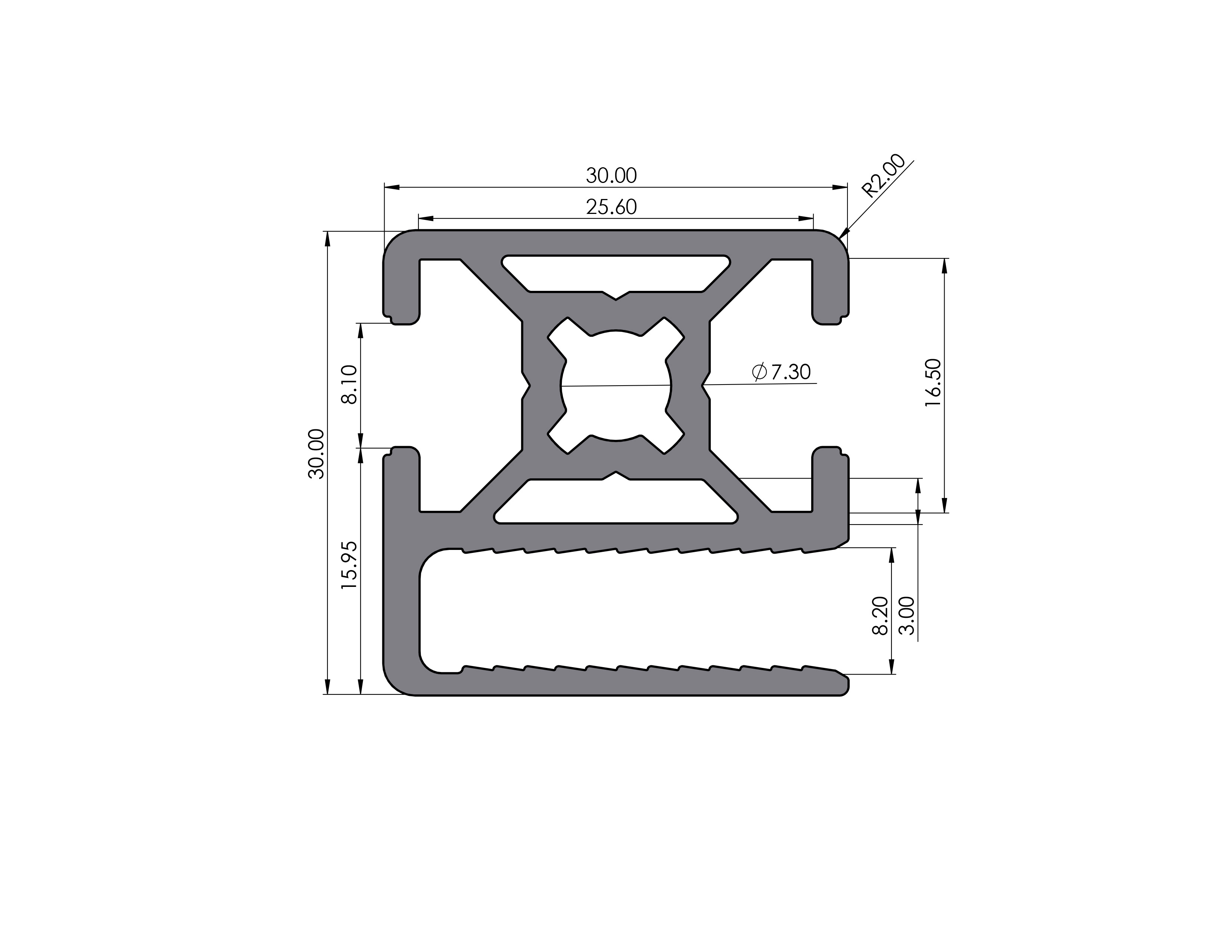

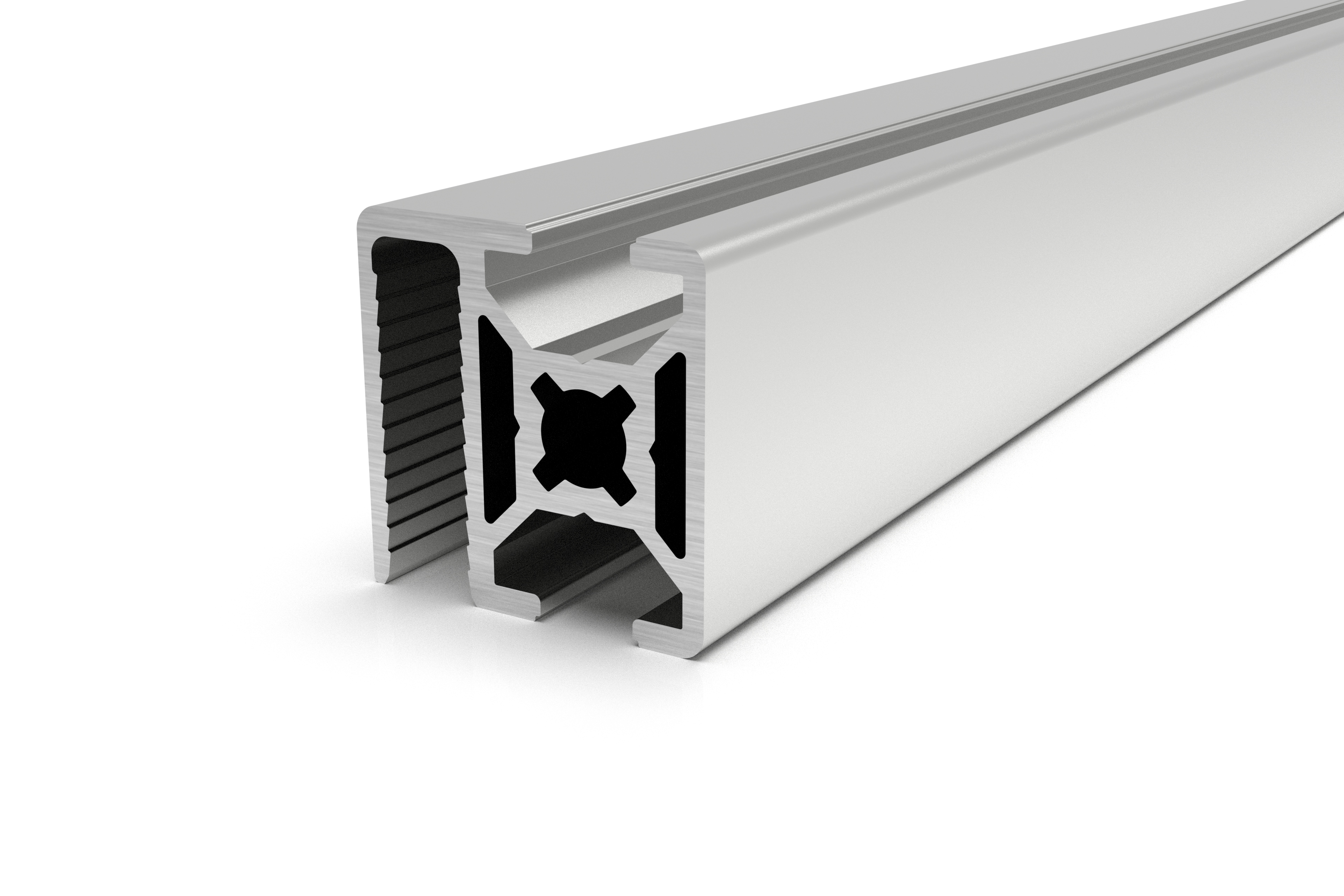

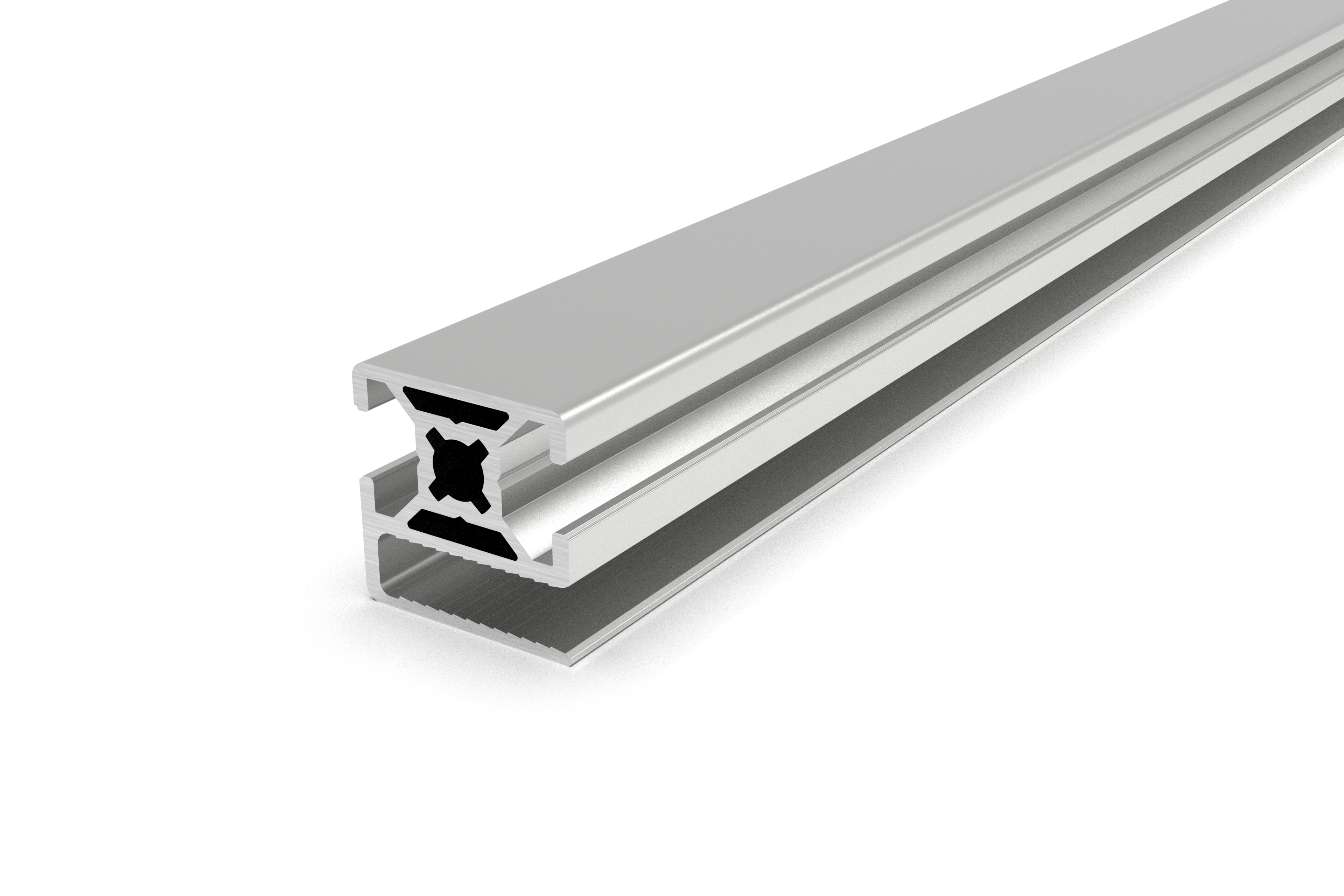

Our strut profile 30x30 mm with groove width 8 mm.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 3.03 cm4
Moment of inertia I y: 2.38 cm 4
Resistance torque W x: 1.90 cm³
Resistance torque W y: 1.51 cm³
Weight kg / m: 0,854
Note
Aluminum profile in natural anodised design from European production
Can be installed with accessories of the series 8 in grid 30
Profile is ideal for threaded fasteners
Wave gratings are stably fixed directly in the special groove in this profile without additional edging
