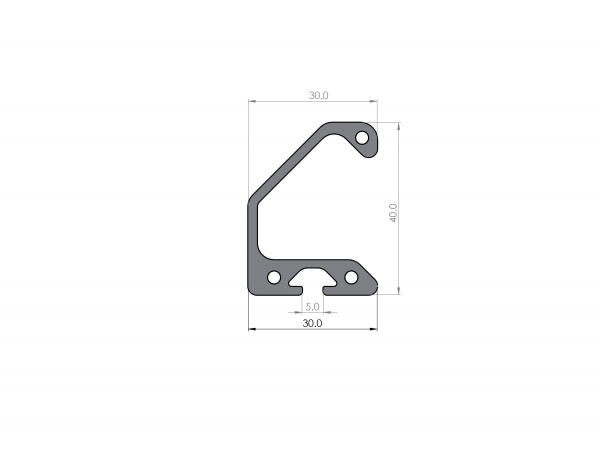

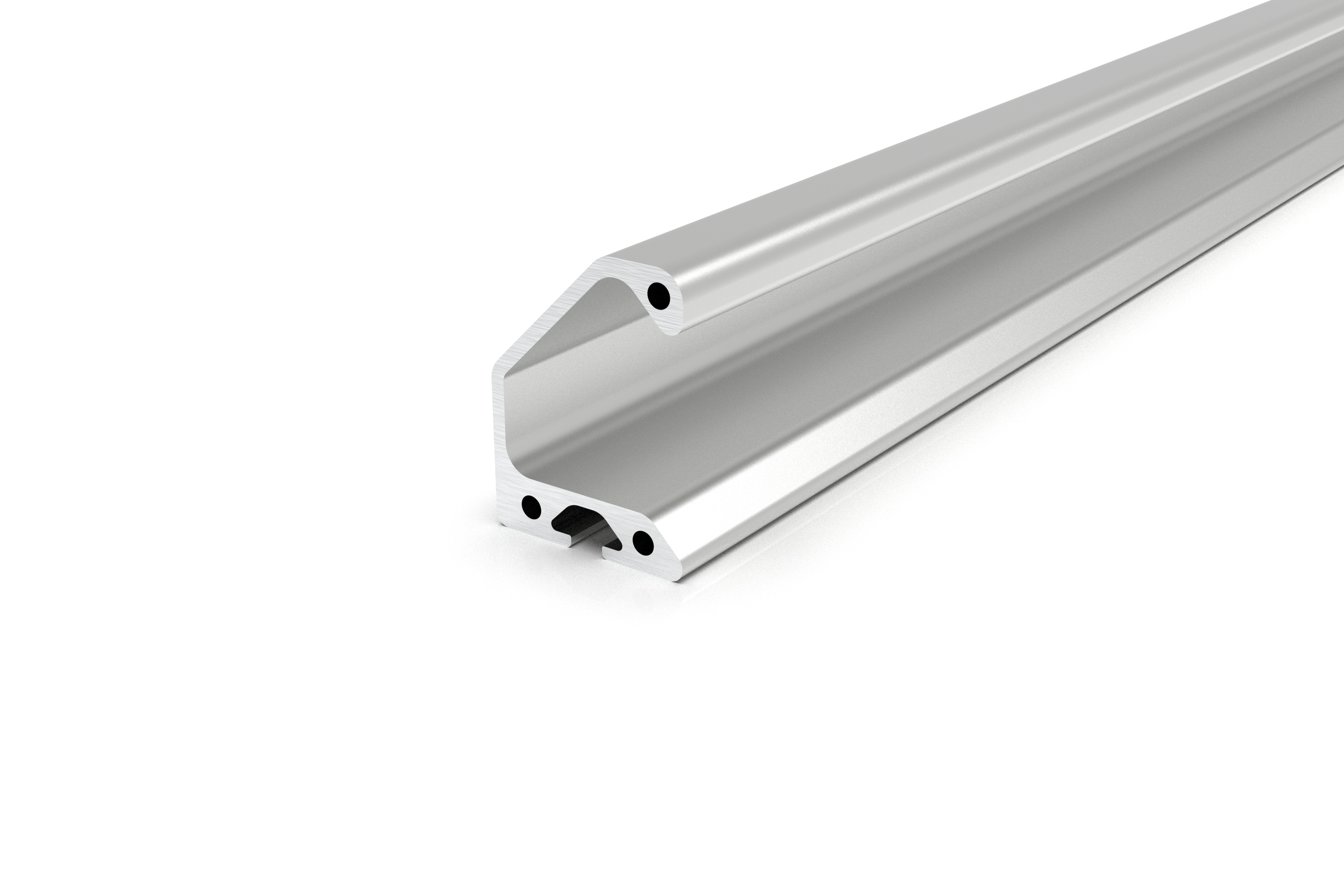

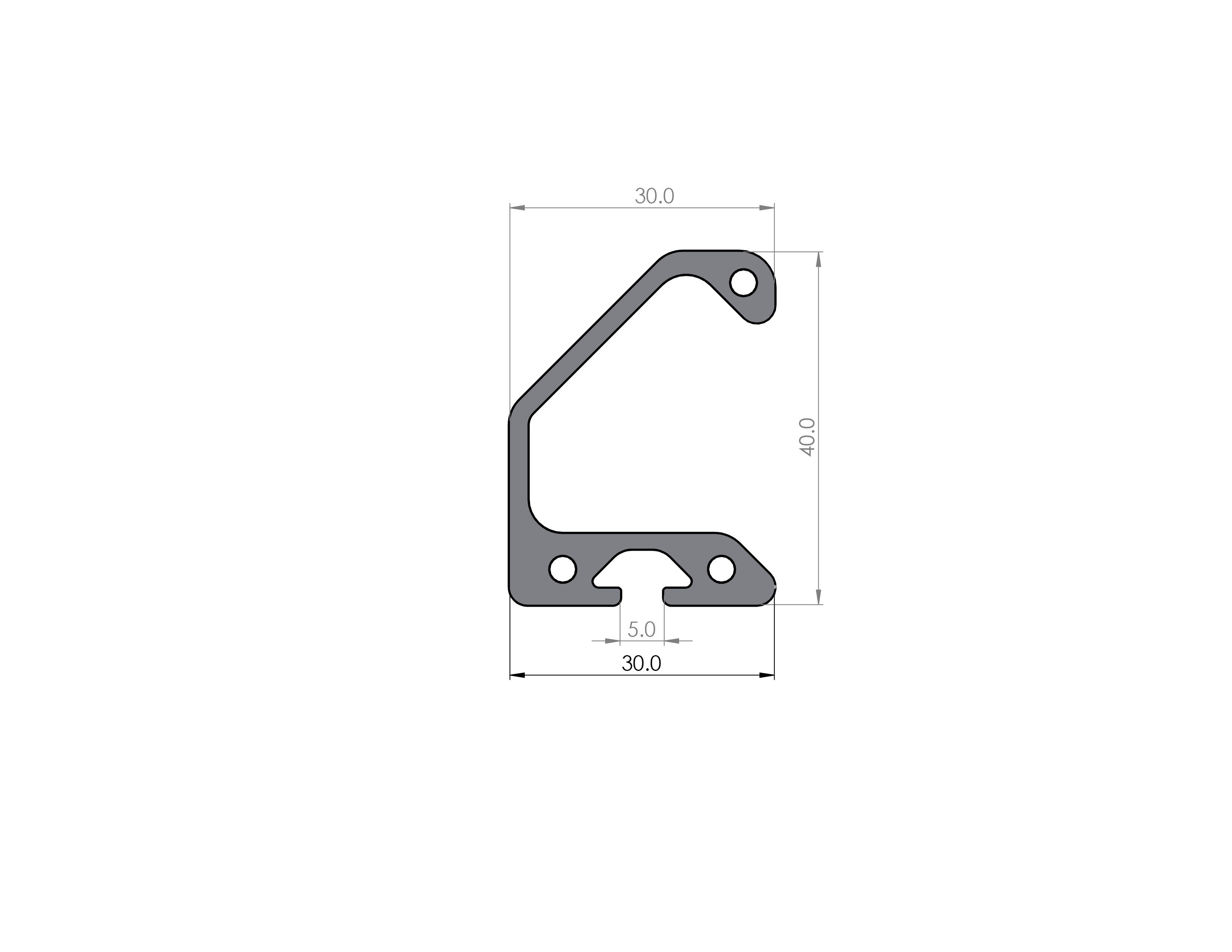

Our handle profile with groove width 5 mm.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
The cut is included in the price.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 5.87 cm4
Moment of inertia I y: 2.39 cm 4
Resistance torque W x: 2.35 cm³
Resistance moment W y: 1.46 cm³
Weight kg / m: 0.758
Note
The handle strip profile is used for a variety of attachment to swivel and sliding doors and drawers and flaps. It can also be mounted on surface elements as additional stabilization. Preferably, the cut edges are to close with the handle strips cover set.
To screw nuts from series 5 are required.
Can be installed with all profiles of the series 5/6/8
