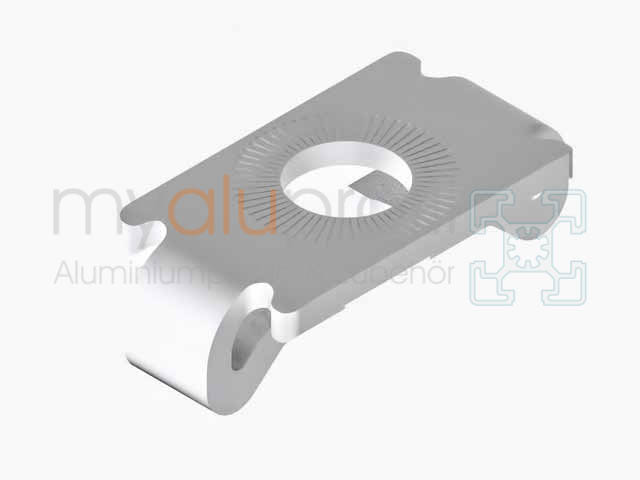

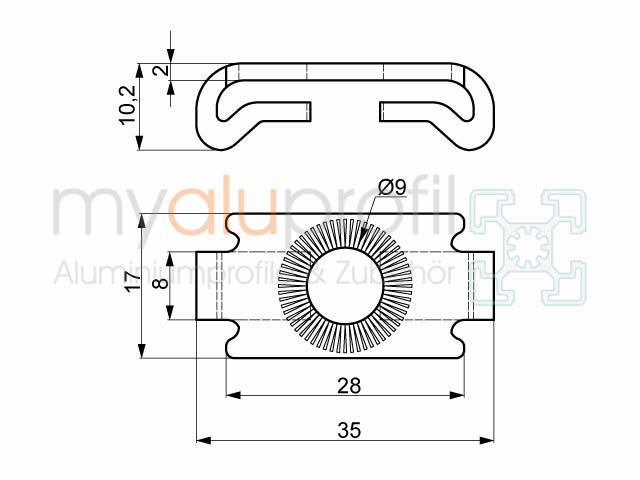

Stainless centering plates are used for a stable 90 ° connection with a small machining effort. It is only needed to cut an M8 thread in the core hole of a profile and a hole with the diameter of 7.0 in the right-angled profile. In addition, they ensure a correct bearing fixation of the profiles.
Can be installed with all profiles of the series 8 in grid 40
Technical specifications
Material: ST stainless
Weight kg / piece: 0,011
