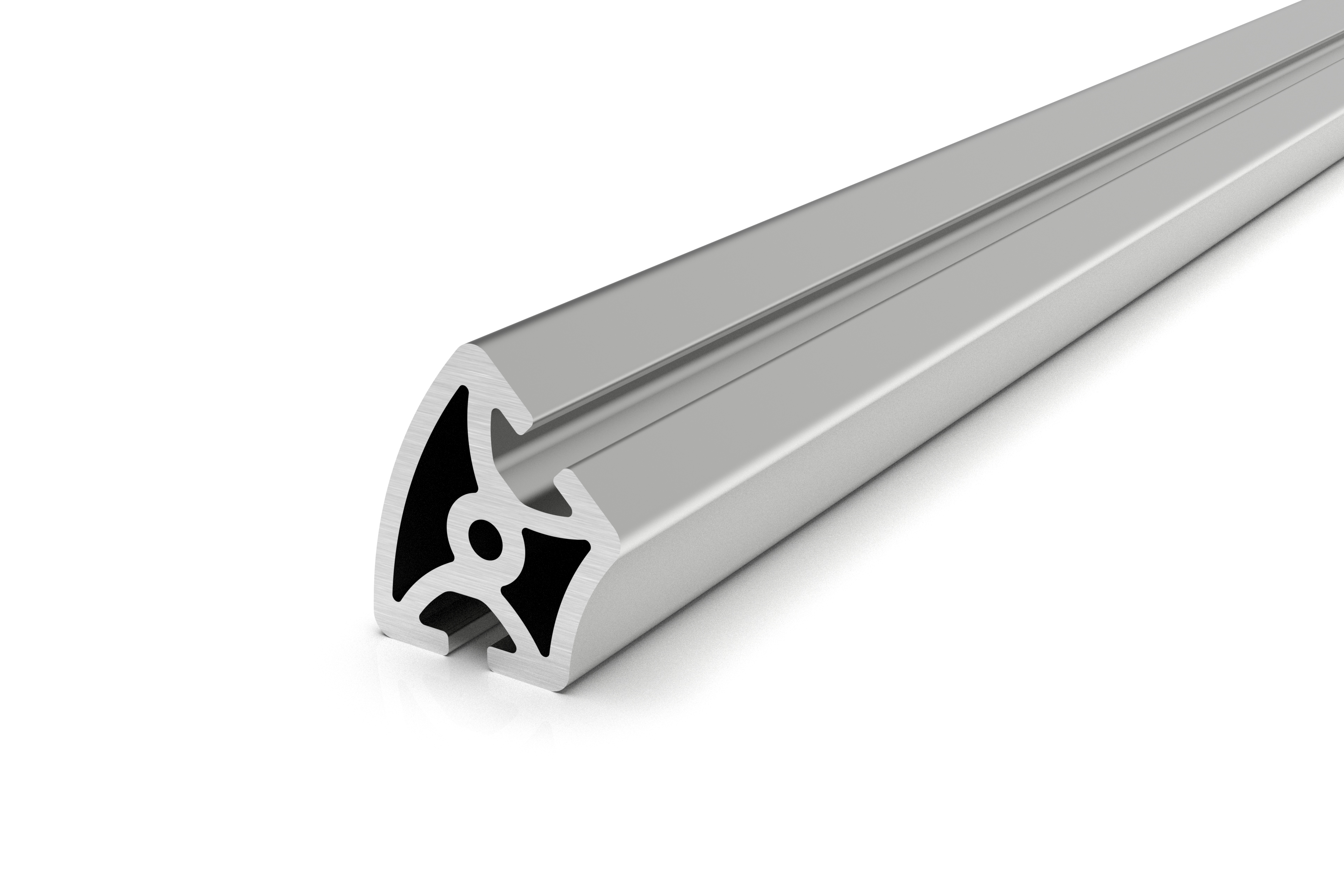

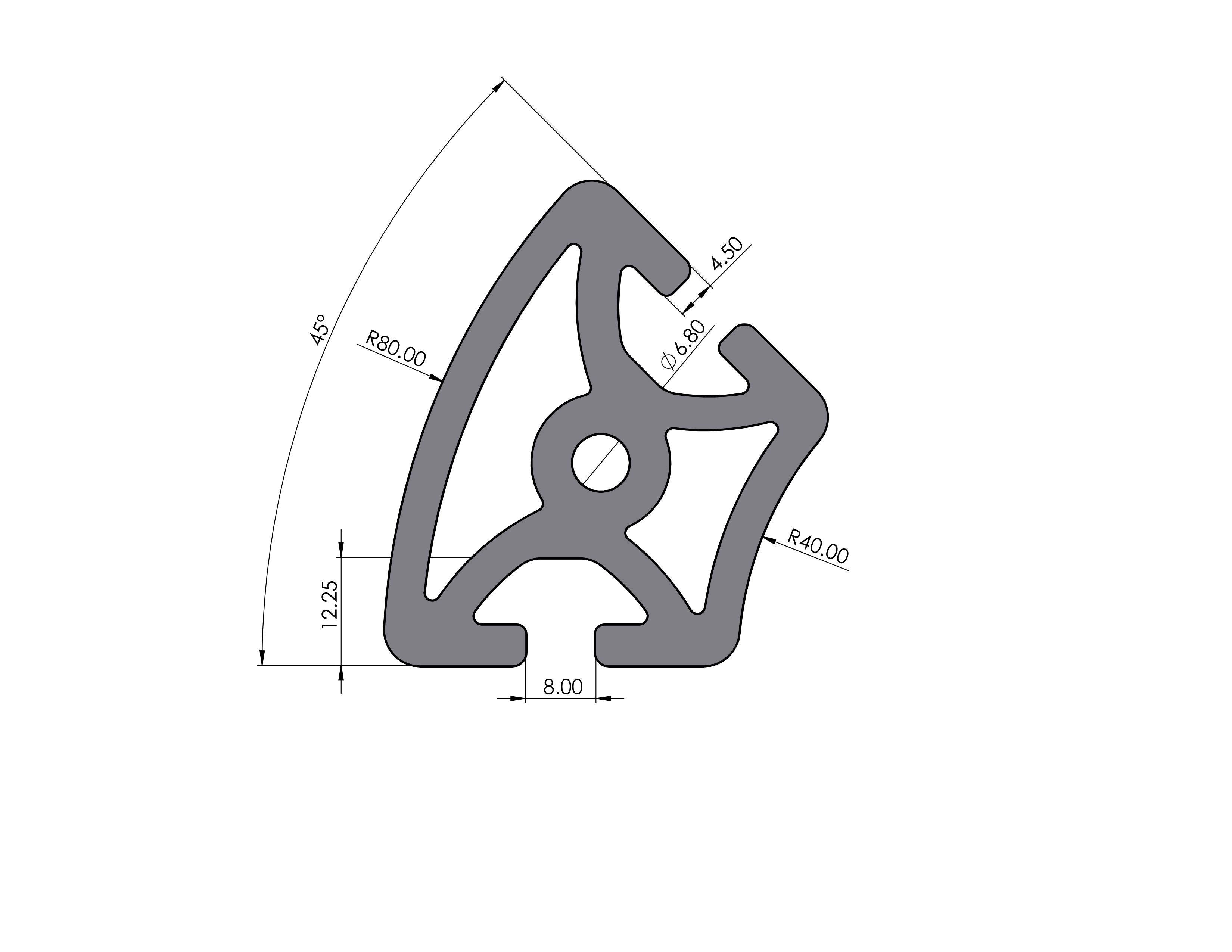

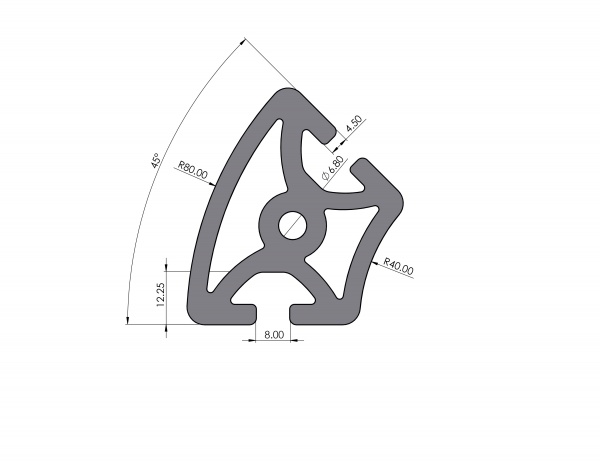

Our strut profile R40 / 80 45 ° heavy D40 mm with groove width 8 mm.
The profile is anodized and made of aluminum.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 23.7 cm4
Moment of inertia I y: 15.38 cm4
Resistance torque W x: 7.5 cm³
Resistance torque W y: 5.87 cm³
Weight kg / m: 2.708
Note
Aluminum profile in natural anodised design from European production
Can be installed with accessories of series 8 in grid 40
Profile is ideal for threaded fasteners
