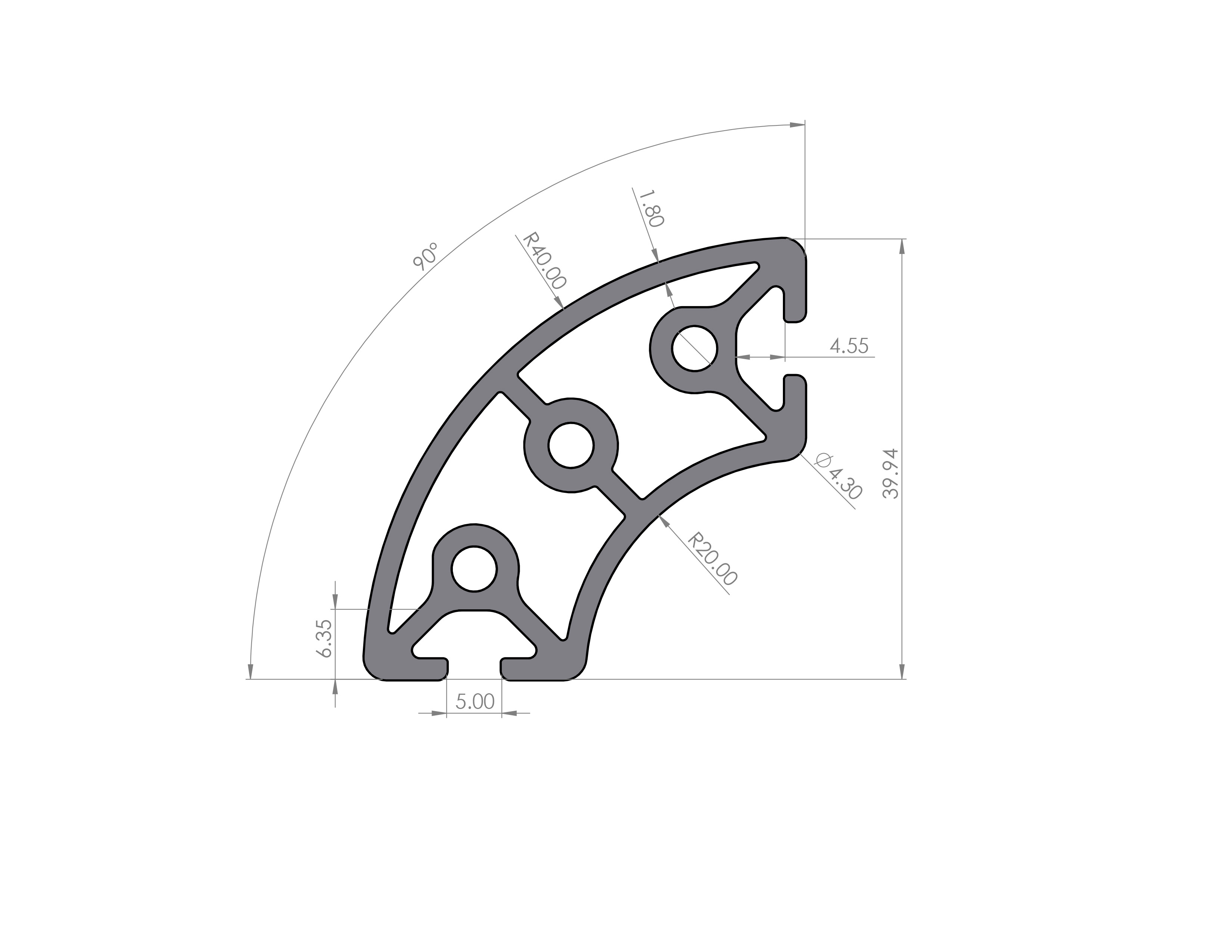

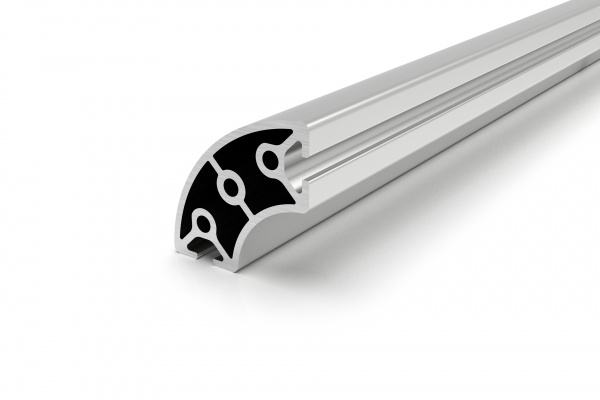

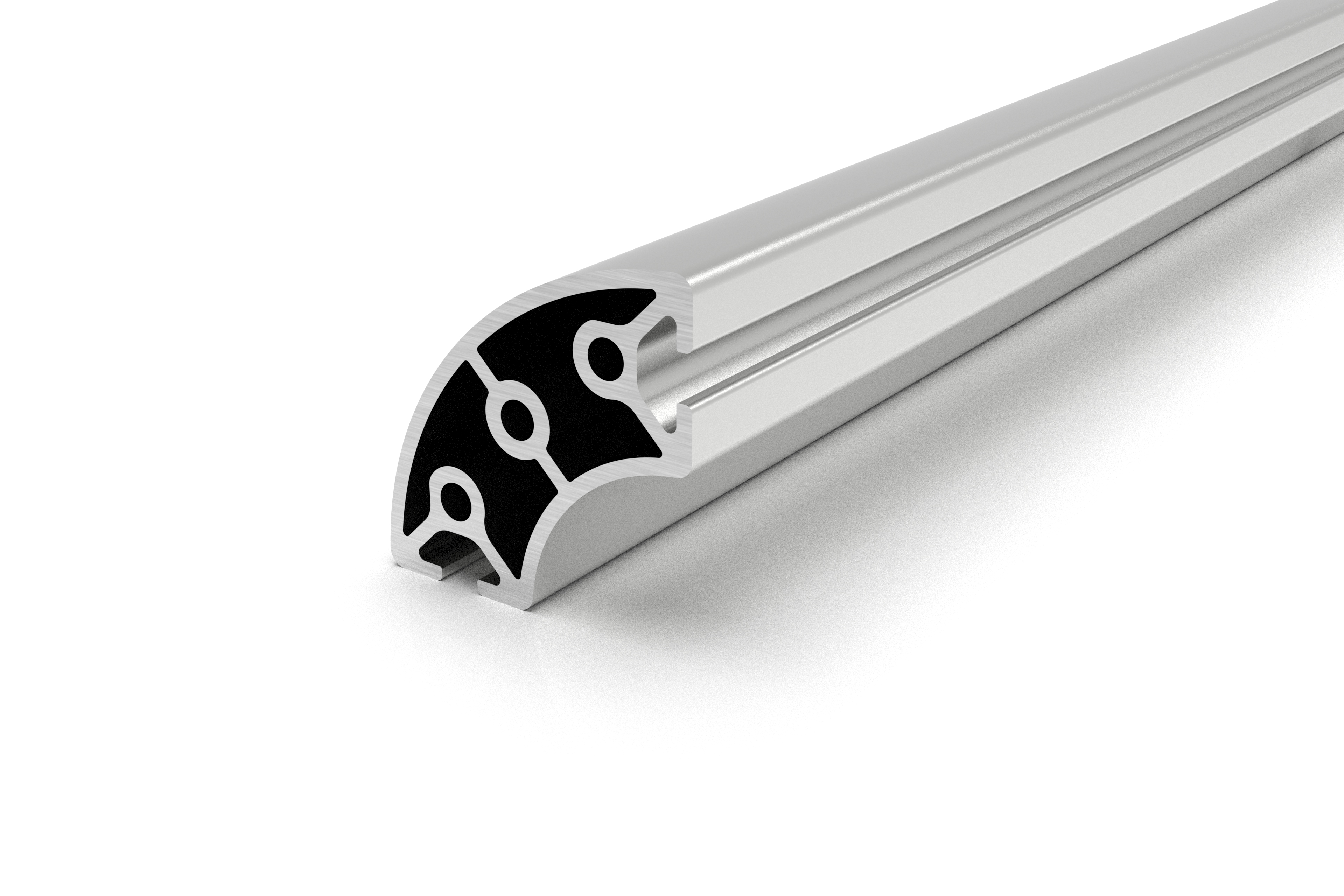

Our strut profile R20x40 mm with groove width 5 mm half round 90 °.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 1.73 cm4
Moment of inertia I y: 8,52 cm4
Resistance moment W x: 1.34 cm³
Resistance moment W y: 3.11 cm³
Weight kg / m: 1,047
Note
Aluminum profile in natural anodised design from European production
Can be installed with all accessories of the series 5
