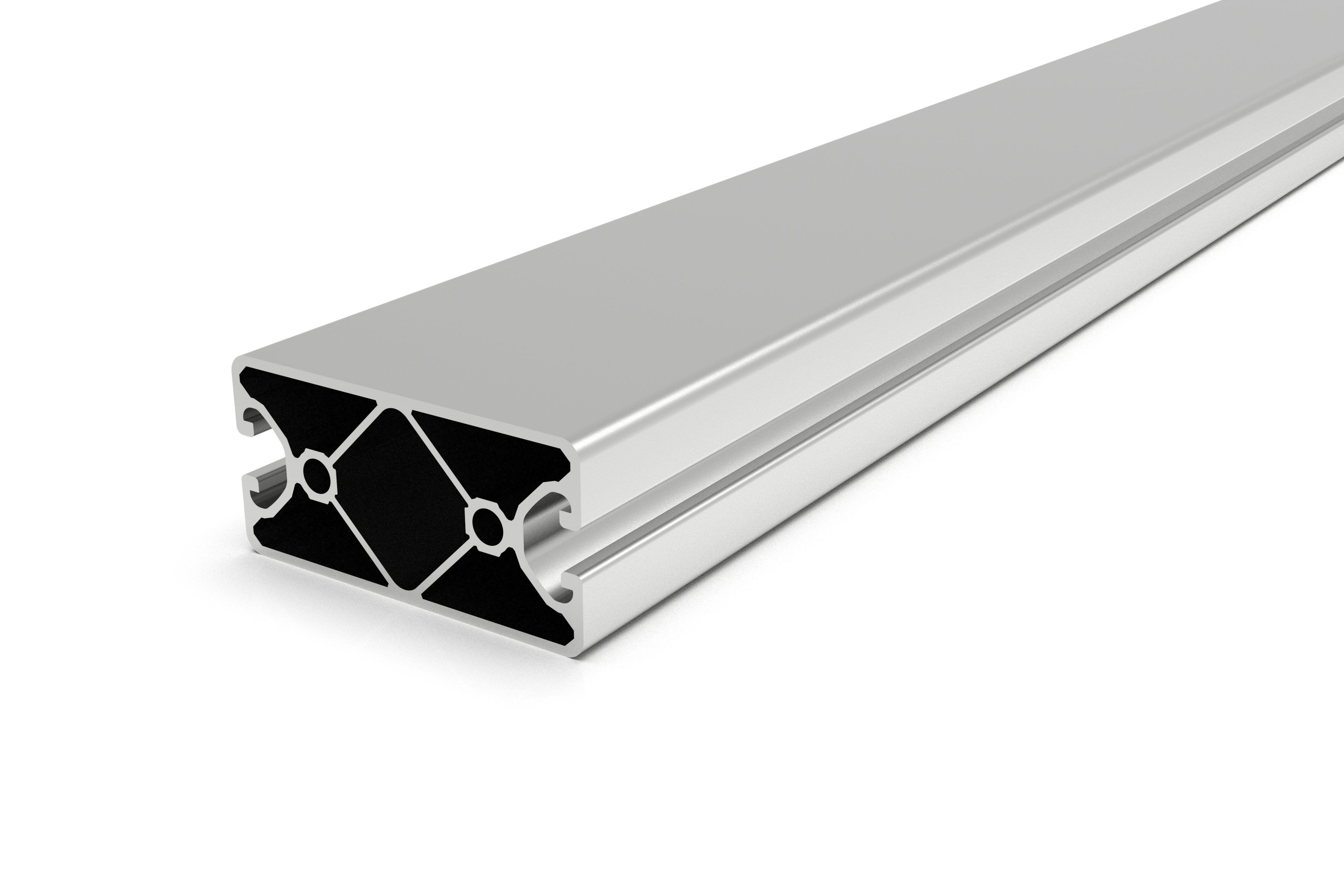

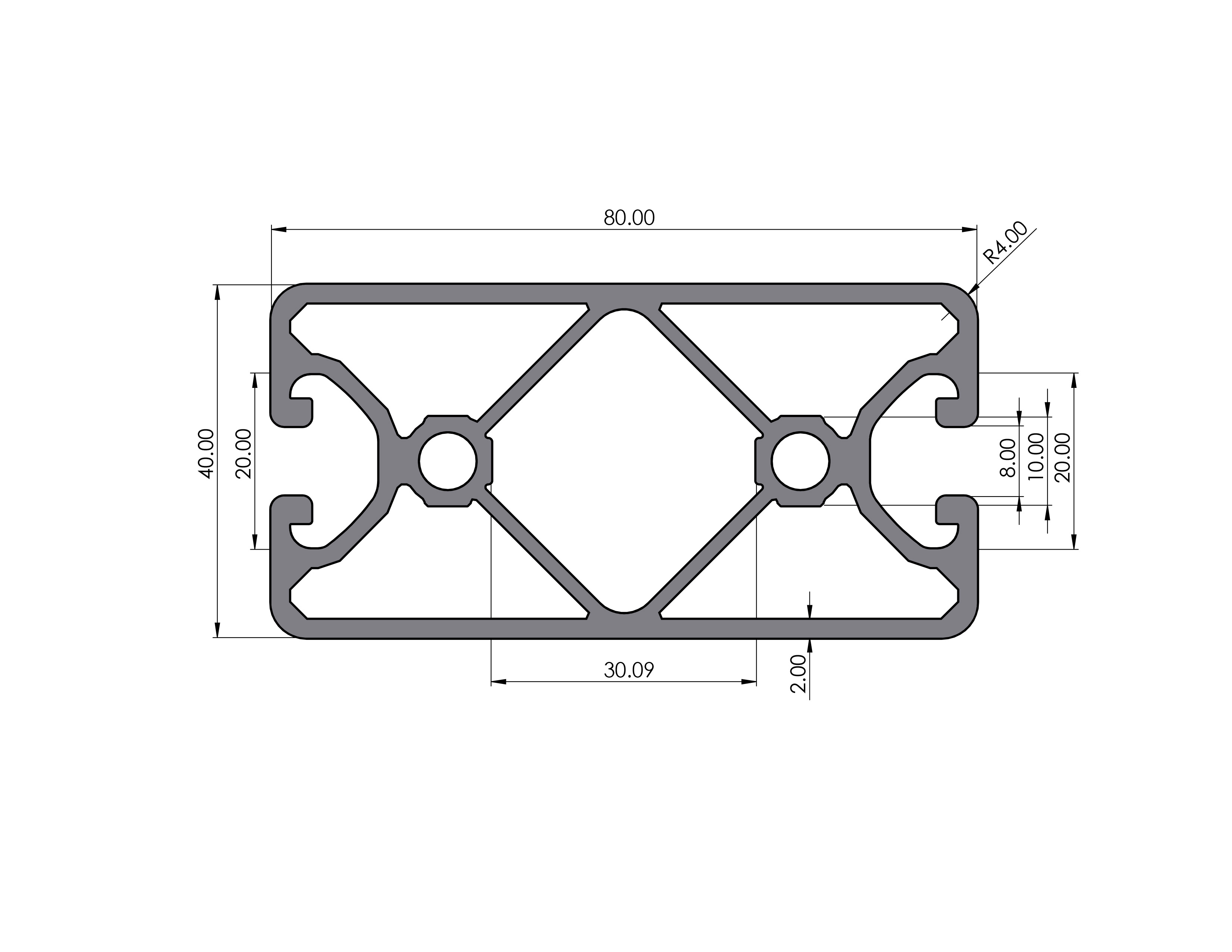

Our strut profile 80x40 4N180 Eco mm with groove width 8 mm and four closed grooves.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 15.88 cm4
Moment of inertia I y: 57.74 cm 4
Resistance torque W x: 7.94 cm³
Resistance torque W y: 14.44 cm³
Weight kg / m: 2.346
Note
Aluminum profile in natural anodised design from European production
Can be installed with accessories of series 8 in grid 40
At high load not suitable for thread form connectors
