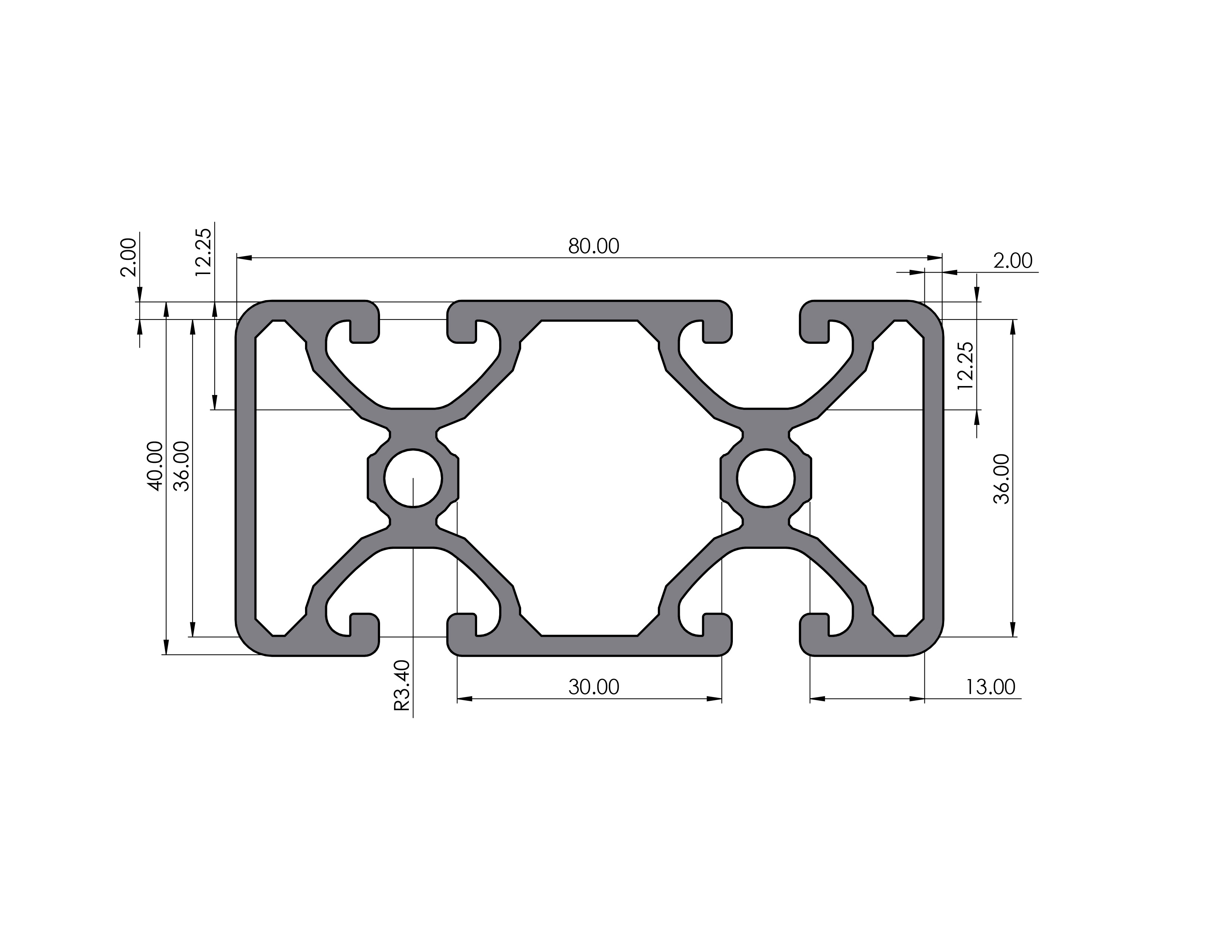

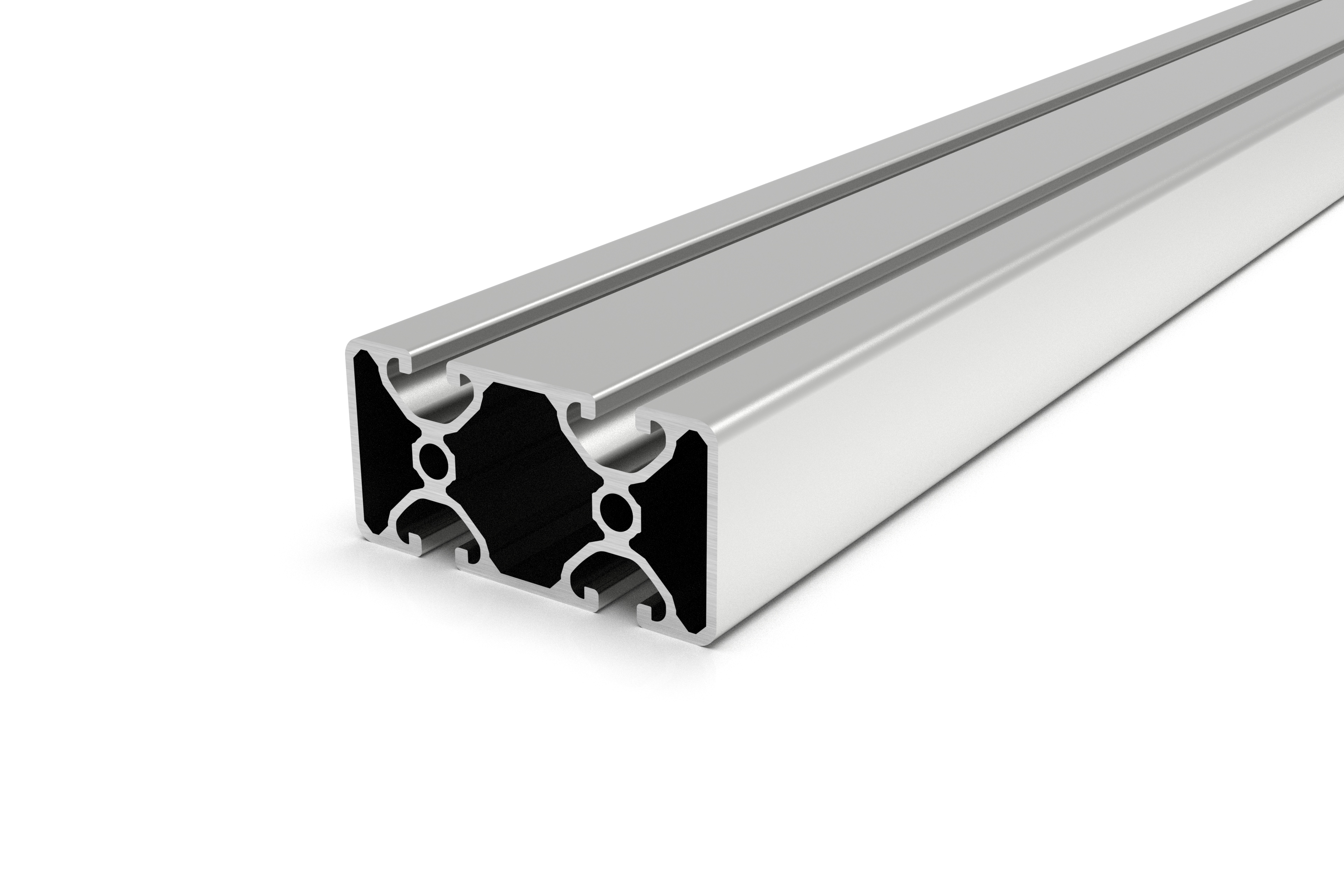

Our strut profile 80x40 2N180 Eco mm with groove width 8 mm and two closed grooves.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 16.74 cm4
Moment of inertia I y: 56.68 cm4
Resistance torque W x: 8.37 cm³
Resistance torque W y: 14.17 cm³
Weight kg / m: 2.204
Note
Aluminum profile in natural anodised design from European production
Can be installed with accessories of series 8 in grid 40
At high load not suitable for thread form connectors
