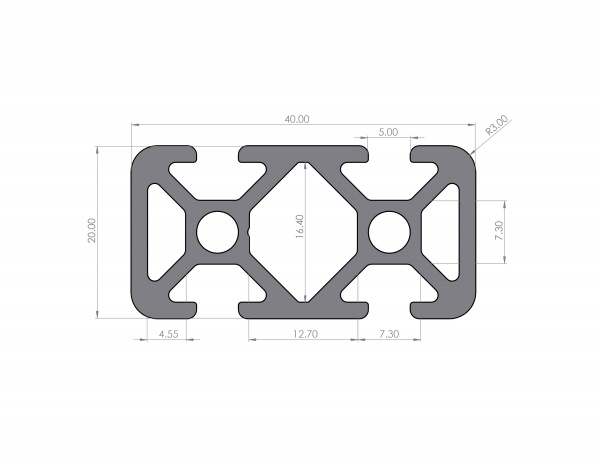

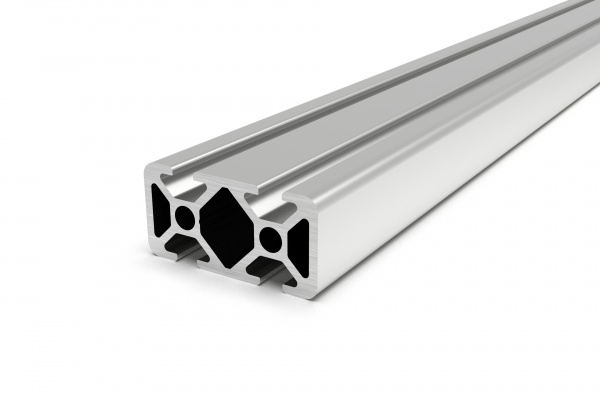

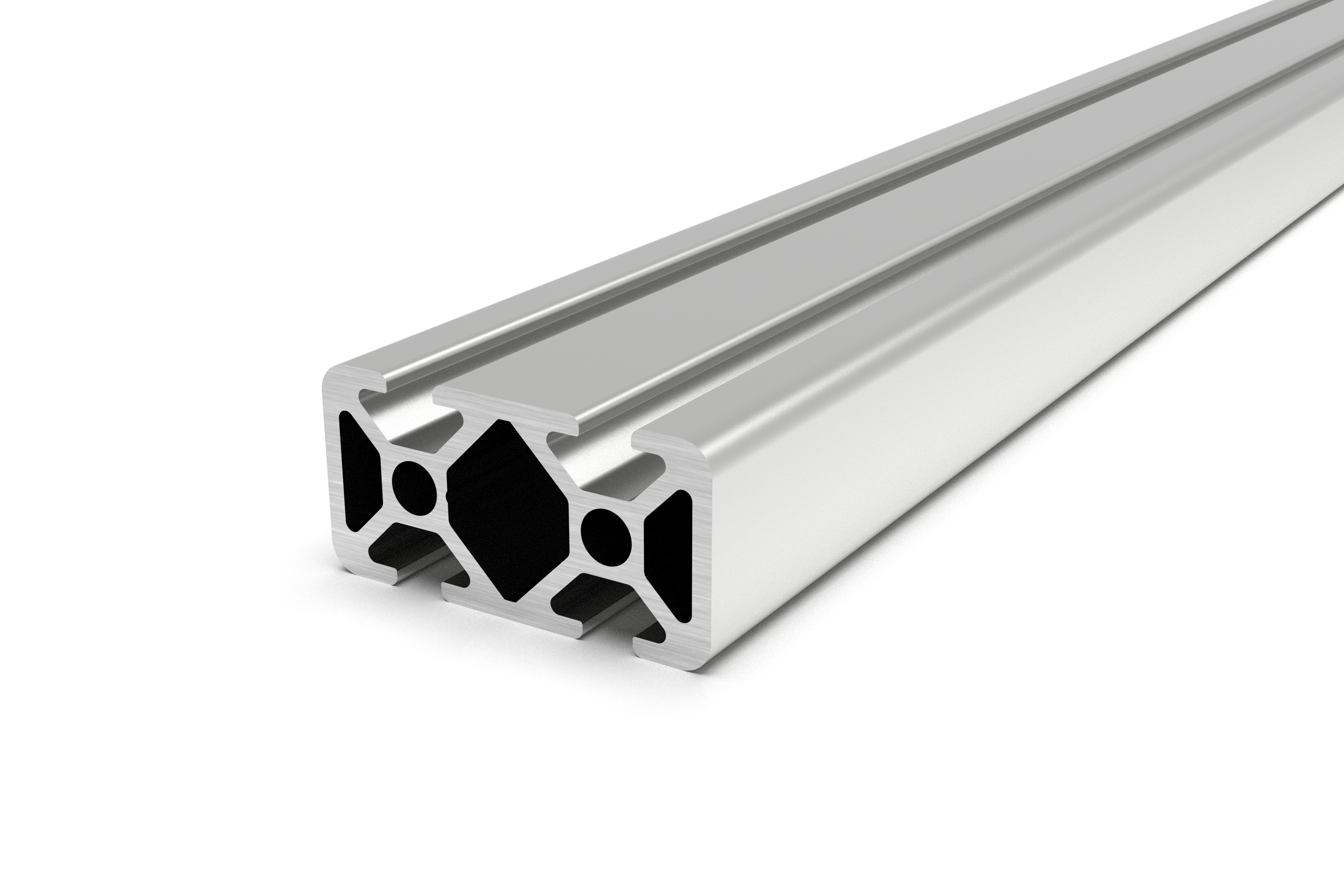

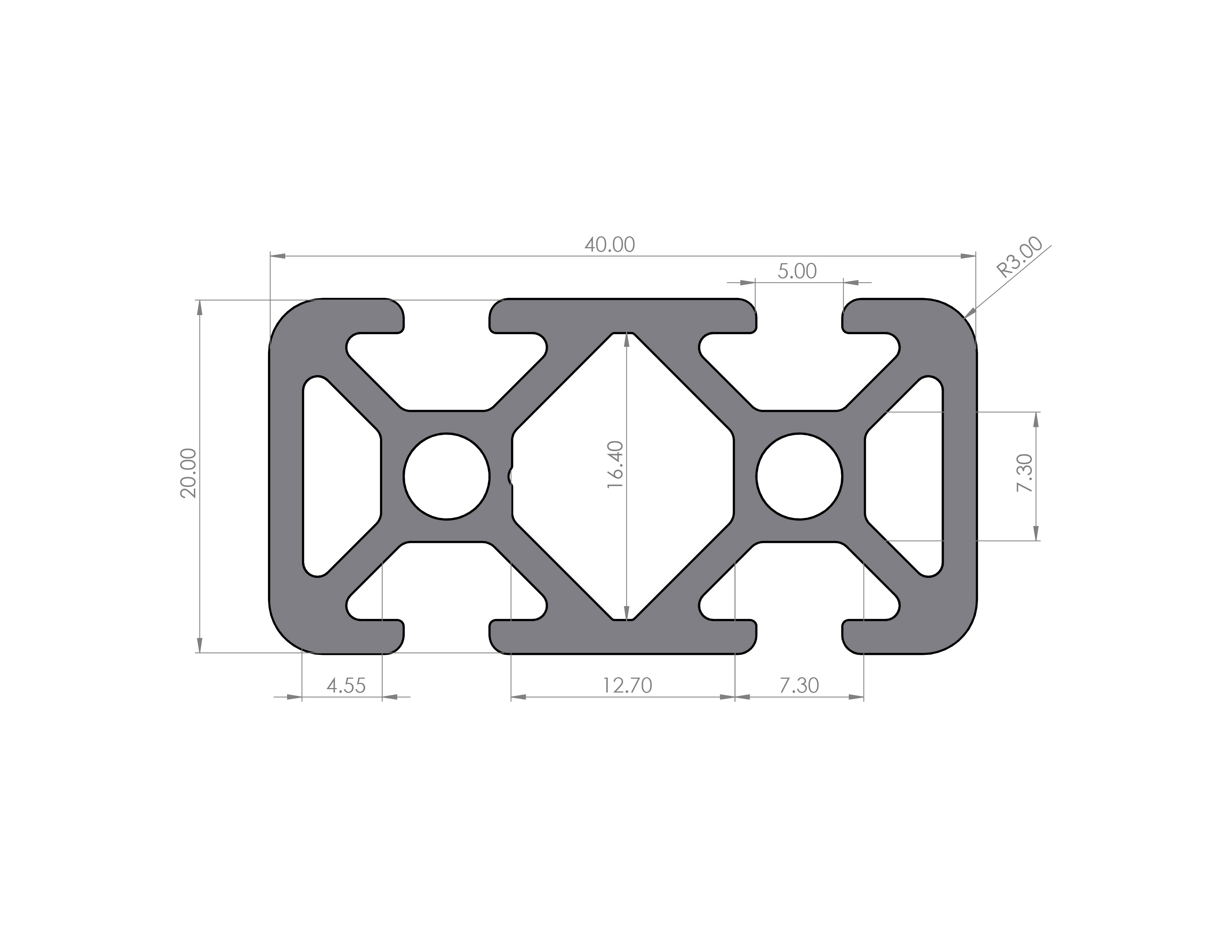

Our strut profile 20x40 mm with groove width 5 mm 2N180.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 1.36 cm4
Moment of inertia I y: 5.62 cm 4
Resistance moment W x: 1.36 cm³
Resistance moment W y: 2.81 cm³
Weight kg / m: 0,883
Note
Aluminum profile in natural anodised design from European production
Can be installed with all accessories of the series 5
