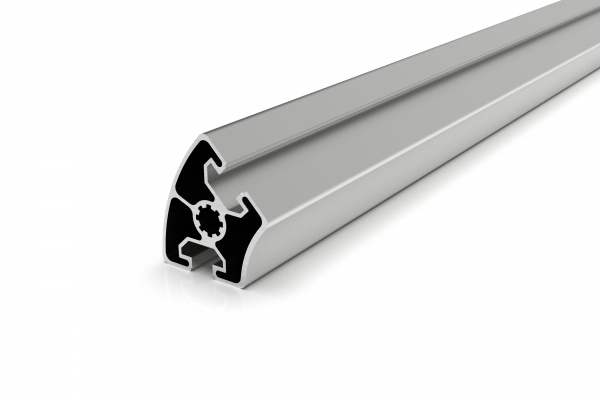

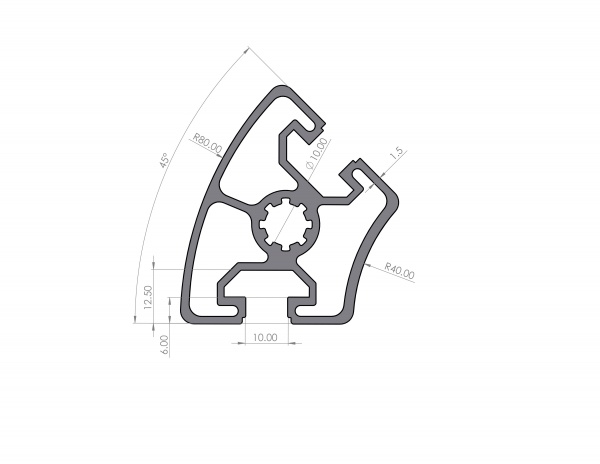

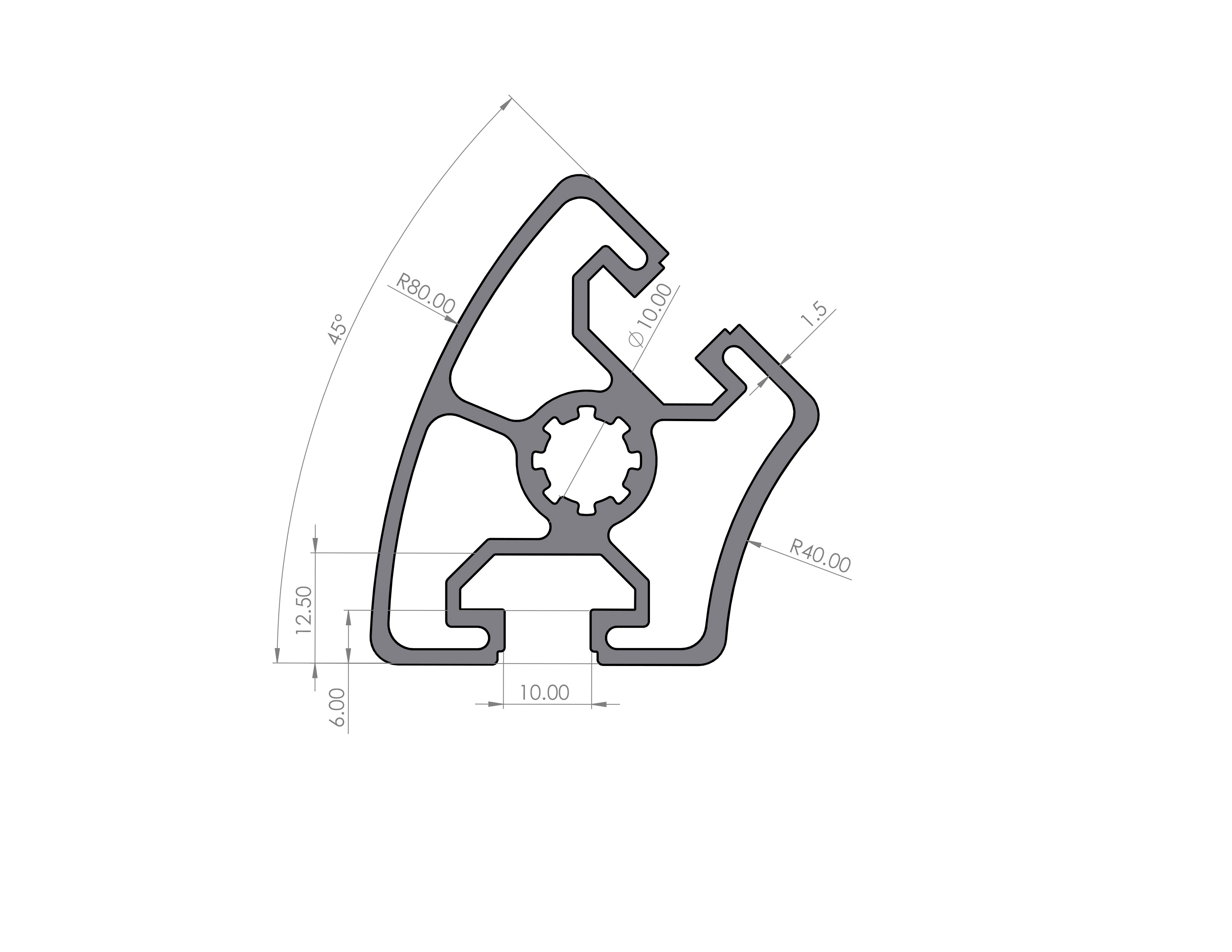

Our strut profile R40-45 ° mm with groove width 10mm.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 11.66 cm4
Moment of inertia I y: 8.09 cm4
Resistance torque W x: 3.61 cm³
Resistance torque W y: 3.09 cm³
Weight kg / m: 1,452
Note
Aluminum profile in natural anodised design from European production
Can be installed with accessories of the series 10
Can be combined with all profiles of the 10 series
