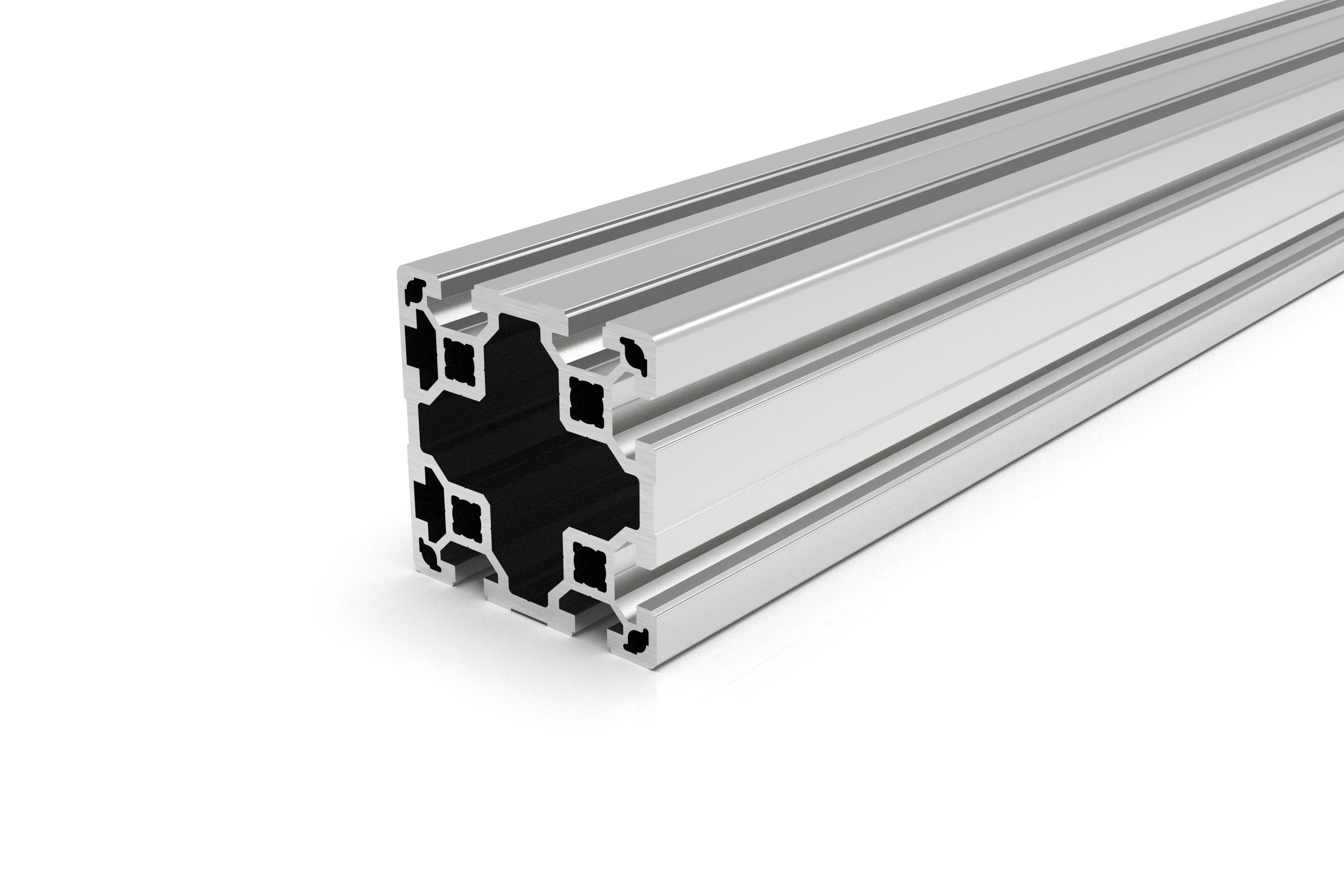

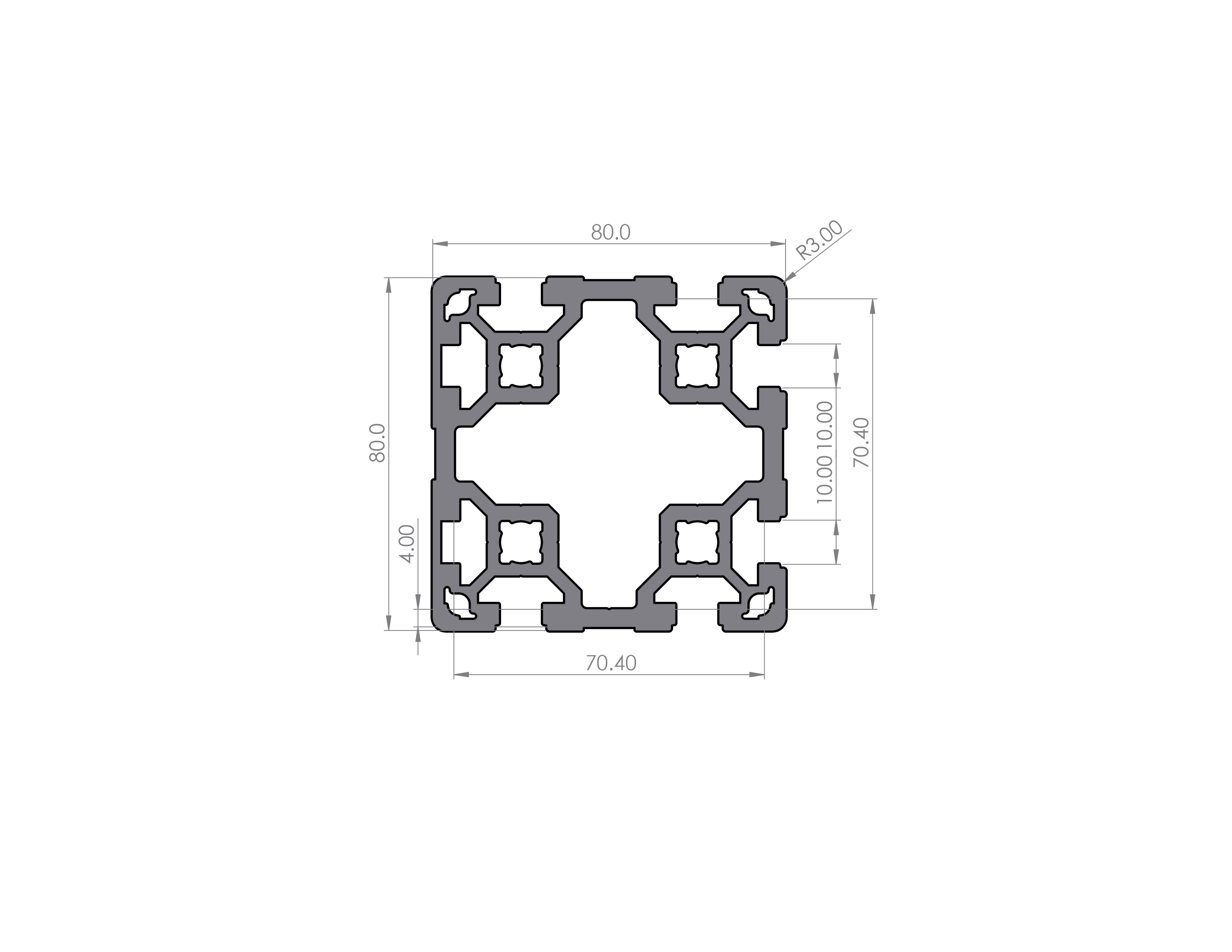

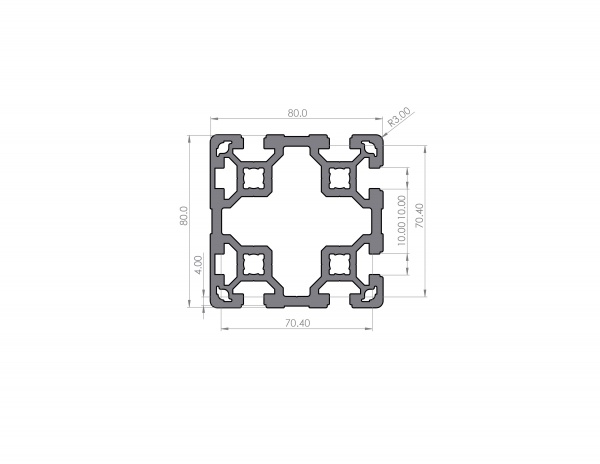

Our strut profile 80x80 mm with groove width 10mm in 2N design.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 139.75 cm4
Moment of inertia I y: 144.07 cm4
Resistance torque W x: 34.93 cm³
Resistance moment W y: 35.32 cm³
Weight kg / m: 4,90
Note
Aluminum profile in natural anodised design from European production
Can be installed with accessories of the series 10
Can be combined with all profiles of the 10 series
